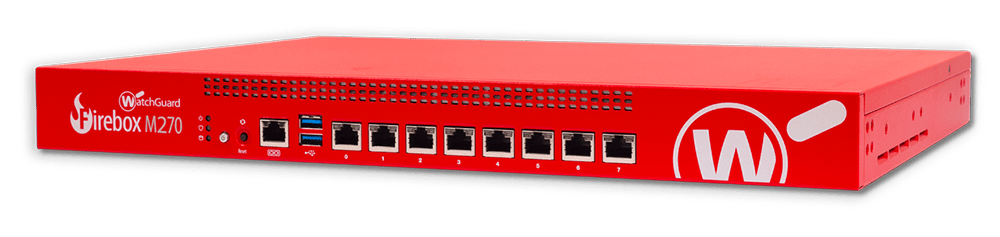

WatchGuard Firebox M270 Firewall
WatchGuard Firebox M270, M370 Firewall
|
Firebox |
M270 |
M370 |
|
Throughput |
||
|
Firewall (UDP 1518) |
4.9 Gbps |
8 Gbps |
|
Firewall (IMIX) |
1.8 Gbps |
4.7 Gbps |
|
VPN (UDP 1518) |
1.6 Gbps |
4.6 Gbps |
|
VPN (IMIX) |
480 Mbps |
1.4 Gbps |
|
HTTPS (IPS enabled) |
480 Mbps |
800 Mbps |
|
Gateway AntiVirus |
2.1 Gbps |
3.0 Gbps |
|
IPS (fast/full scan) |
2.3/0.9 Gbps |
4.8/2.5 Gbps |
|
UTM (fast/full scan) |
1.6/0.8 Gbps |
2.6/1.7 Gbps |
|
Capacity |
||
|
Interfaces 10/100/1000 |
8 |
8 |
|
I/O interfaces |
1 serial/2 USB |
1 serial/2 USB |
|
Concurrent connections |
2,000,000 |
3,300,000 |
|
Concurrent connections (proxy) |
300,000 |
330,000 |
|
New connections per second |
40,000 |
51,000 |
|
VLANs |
100 |
200 |
|
WSM licenses (incl) |
4 |
4 |
|
TDR Host Sensors included |
60 |
150 |
|
Authenticated users limit |
500 |
500 |
|
VPN Tunnels |
||
|
Branch Office VPN |
50 |
100 |
|
Mobile VPN |
75 |
100 |
|
Security Features |
||
|
Firewall |
Stateful packet inspection, deep packet inspection, proxy firewall |
|
|
Application proxies |
HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, POP3S and Explicit Proxy |
|
|
Threat protection |
DoS attacks, fragmented & malformed packets, blended threats & more |
|
|
VoIP |
H.323, SIP, call setup and session security |
|
|
Filtering options |
Browser Safe Search, Google for Business |
|
|
VPN & Authentication |
|
|
|
Cloud providers |
AWS (Static/Dynamic), Azure (Static/Dynamic) |
|
|
Encryption |
AES 256-128 bit, 3DES, DES |
|
|
IPSec |
SHA-2, IKE v1/v2, IKE pre-shared key, 3rd party cert, Suite B |
|
|
Single sign-on |
Windows, Mac OS X, mobile operating systems, RADIUS |
|
|
Authentication |
RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, Duo, SMS Passcode |
|
|
Management |
||
|
Logging and notifications |
WatchGuard, Syslog, SNMP v2/v3 |
|
|
User interfaces |
Centralized console (WSM), Web UI, scriptable CLI |
|
|
Reporting |
WatchGuard Dimension includes over 100 pre-defined reports, executive summary and visibility tools |
|
|
Certifications |
||
|
Security* |
ICSA Firewall, ICSA IPSec VPN, CC EAL4+, FIPS 140-2 |
|
|
Safety |
NRTL/C, CB |
|
|
Network |
IPv6 Ready Gold (routing) |
|
|
Hazardous substance control |
WEEE, RoHS, REACH |
|
|
Networking |
||
|
Routing |
Static, Dynamic (BGP4, OSPF, RIP v1/v2), Policy-based routing |
|
|
High Availability |
Active/passive, active/active with load balancing |
|
|
QoS |
8 priority queues, DiffServ, modified strict queuing |
|
|
IP address assignment |
Static, DHCP (server, client, relay), PPPoE, DynDNS |
|
|
NAT |
Static, dynamic, 1:1, IPSec traversal, policy-based, Virtual IP for server load balancing |
|
|
Link aggregation |
802.3ad dynamic, static, active/backup |
|
|
Other features |
Port Independence, Multi-WAN failover and load balancing, server load balancing, host header redirection, USB modem as a dedicated interface |
|
|
Physical and Environment |
M270 |
M370 |
|
Physical and Power Specifications |
||
|
Product Dimensions |
17.2” x 1.73” x 12.6” (438 x 44 x 320mm) |
17” x 1.75” x 12.08” (431 x 44 x 307 mm) |
|
Shipping Dimensions |
22.0” x 21.3” x 5.1” (560 x 540 x 130mm) |
18” x 21” x 5.25” (45.7 x 53.3 x 13.3 cm) |
|
Shipping Weight |
18.9 lbs (8.5Kgs) |
17 lbs (7.7 Kgs) |
|
AC Power |
100-240 VAC Autosensing |
|
|
Power Consumption |
U.S. 75 Watts (max), 256 BTU/hr (max) |
|
|
Rack Mountable |
1U rack mount kit included |
|
|
Environment Specifications |
||
|
Operating Temperature |
32° F to 104° F / 0° C to 40° C |
|
|
Storage Temperature |
-40° F to 158° F / -40° C to 70° C |
|
|
Operating Relative Humidity |
10% to 85% non-condensing |
|
|
Storage Relative Humidity |
10% to 95% non-condensing |
|
|
Operating Altitude |
0 to 9,843 ft at 95° F (3,000 m at 35° C) |
|
|
Storage Altitude |
0 to 15,000 ft at 95° F (4,570 m at 35° C) |
|
|
MTBF |
51,644 hours @ 77° F (25° C) |
|
