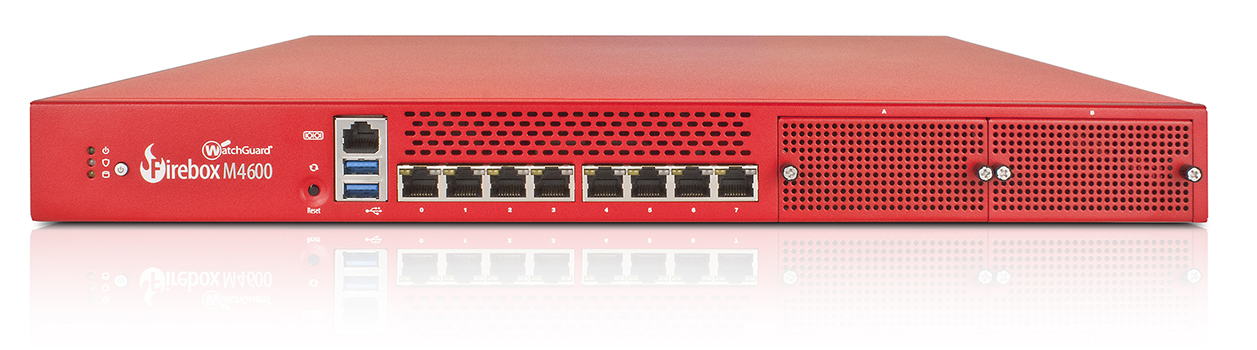

WatchGuard Firebox M4600 Firewall
|
WatchGuard Firebox M4600 & M5600 Detailed Specs |
||
|
Models: |
Firebox M4600 |
Firebox M5600 |
|
Configuration: |
base + 4 x 10 Gb interfaces |
base + 4 x 10 Gb interfaces |
|
Performance |
||
|
Firewall Throughput* |
40 Gbps |
60 Gbps |
|
VPN Throughput* |
10 Gbps |
10 Gbps |
|
AV Throughput* |
9 Gbps |
12 Gbps |
|
IPS Throughput* |
13 Gbps |
18 Gbps |
|
UTM Throughput* |
8 Gbps |
11 Gbps |
|
Interfaces Installed |
8 x 1G |
8 x 1 Gb and 4 x 10 Gb |
|
I/O Interfaces |
1 serial/2 USB |
2 serial/2 USB |
|
Concurrent connections (bi-directional) |
7.5 million |
12.7 million |
|
New connections per second |
160,000 |
240,000 |
|
VLANs |
1,000 |
Unlimited |
|
Authenticated users limit |
Unrestricted |
Unrestricted |
|
VPN Tunnels |
||
|
Branch Office VPN |
5,000 |
Unlimited |
|
Mobile VPN IPSec |
10,000 |
Unlimited |
|
Mobile VPN SSL/L2TP |
10,000 |
Unlimited |
|
Security |
||
|
Firewall |
Stateful packet inspection, deep packet inspection, proxy firewall |
|
|
Application Proxies |
HTTP, HTTPS, SMTP, POP3, TCP-UDP, FTP, DNS |
|
|
Threat Protection |
DoS attacks, fragmented & malformed packets, blended threats & more |
|
|
VoIP |
H.323, SIP, call setup and session security |
|
|
Filtering options |
Browser Safe Search, YouTube for Schools |
|
|
Security Subscriptions |
Application Control, Intrusion Prevention Service, WebBlocker, Data Loss Prevention, Gateway AntiVirus, spamBlocker, Reputation Enabled Defense, APT Blocker |
|
|
VPN & Authentication |
||
|
Encryption |
DES, 3DES, AES 128-, 192-, 256-bit |
|
|
IPSec |
SHA-1, SHA-2, MD5, IKE pre-shared key, 3rd party cert |
|
|
Single Sign-On |
Supports Windows, Mac OS X, mobile operating systems |
|
|
Authentication |
RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database |
|
|
Management |
||
|
Logging and notifications |
WatchGuard, Syslog, SNMP v2/v3 |
|
|
User interfaces |
Centralized console (WSM), Web UI, scriptable CLI |
|
|
Reporting |
WatchGuard Dimension includes 70 pre-defined reports, executive summary and visibility tools |
|
|
Certifications |
||
|
Security |
Pending: ICSA Firewall, ICSA IPSec VPN, CC EAL4+, FIPS 140-2 |
|
|
Safety |
NRTL/C, CB |
|
|
Network |
IPv6 Ready Gold (routing) |
|
|
Hazardous substance control |
WEEE, RoHS, REACH |
|
|
Networking |
||
|
Routing |
Static, Dynamic (BGP, OSPF, RIP), Policy-based VPN |
|
|
High Availability |
Active/passive, active/active with load balancing |
|
|
QoS |
8 priority queues, DiffServ, modified strict queuing |
|
|
IP Address Assignment |
Static, DHCP (server, client, relay), PPPoE, DynDNS |
|
|
NAT |
Static, dynamic, 1:1, IPSec traversal, policy-based, Virtual IP for server load balancing |
|
|
Link aggregation |
802.3ad dynamic, static, active/backup |
|
|
Other Features |
Port Independence, Multi-WAN failover and load balancing, server load balancing, transparent/drop-in mode |
|
|
Hardware |
||
|
Product Dimensions |
17” x 1.8” x 18.5” (431 x 44 x 468 mm) |
17.4” x 1.8” x 22 (438 x 44 x 580 mm) |
|
Shipping Dimensions |
32” x 8.9” x 23” (795 x 225 x 595 mm) |
23.5” x 8.9” x 31” (595 x 225 x 795 mm) |
|
Shipping Dimensions 10G Module |
6.3” x 3.2” x 12” (160 x 80 x 300 mm) |
|
|
Weight |
38 lb (17 kg) |
46 lb (21 kg) |
|
Shipping Weight Module |
.44 lb (.2 kg) |
|
|
AC Power |
100-240 VAC Autosensing |
|
|
Power Consumption |
U.S. 75 Watts (max), 256 BTU/hr (max) |
|
|
Rack Mountable |
Sliding rack rails included |
|
|
Environment |
Operating |
Storage |
|
Temperature |
32° F to 104° F 0° C to 40° C |
-40° F to 158° F -40° C to 70° C |
|
Relative Humidity |
10% to 85% non-condensing |
10% to 95% non-condensing |
|
Altitude |
0 to 9,843 ft at 95° F (3,000 m at 35° C) |
0 to 15,000 ft at 95° F (4,570 m at 35° C) |
|
MTBF |
50,843 hours @ 77° F (25° C) |
68,879 hours @ 77° F (25° C) |
|
MTBF Module |
3,863,276 hours @ 77° F (25° C) |
|
