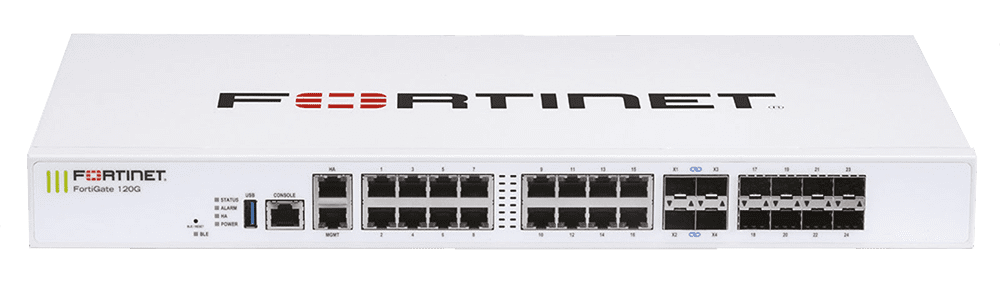

FG-120G
|
Hardware Accelerated GE RJ45 Ports |
16 |
|
GE RJ45 Management / HA |
1 / 1 |
|
Hardware Accelerated GE SFP Slots |
8 |
|
Hardware Accelerated 10 GE SFP+ FortiLink Slots (default) |
4 |
|
USB Ports |
1 |
|
Console (RJ45) Port |
1 |
|
System Performance* — Enterprise Traffic Mix |
|
|
IPS Throughput 2 |
5.3 Gbps |
|
NGFW Throughput 2, 4 |
3.1 Gbps |
|
Threat Protection Throughput 2, 5 |
2.8 Gbps |
|
System Performance and Capacity |
|
|
Firewall Throughput(1518 / 512 / 64 byte UDP packets) |
39 / 39 / 28 Gbps |
|
Firewall Latency (64 byte UDP packets) |
3.17 μs |
|
Firewall Throughput (Packets Per Second) |
42 Mpps |
|
Concurrent Sessions (TCP) |
3 M |
|
New Sessions/Second (TCP) |
140 000 |
|
Firewall Policies |
10 000 |
|
IPsec VPN Throughput (512 byte) 1 |
35 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
|
Client-to-Gateway IPsec VPN Tunnels |
16 000 |
|
SSL-VPN Throughput |
1.5 Gbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
500 |
|
SSL Inspection Throughput(IPS, avg. HTTPS) 3 |
3 Gbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) 3 |
2100 |
|
SSL Inspection Concurrent Session(IPS, avg. HTTPS) 3 |
315 000 |
|
Application Control Throughput(HTTP 64K) 2 |
6.7 Gbps |
|
CAPWAP Throughput (HTTP 64K) |
35 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
48* |
|
Maximum Number of FortiAPs (Total / Tunnel Mode) |
128 / 64 |
|
Maximum Number of FortiTokens |
5000 |
|
High Availability Configurations |
Active-Active, Active-Passive, Clustering |
