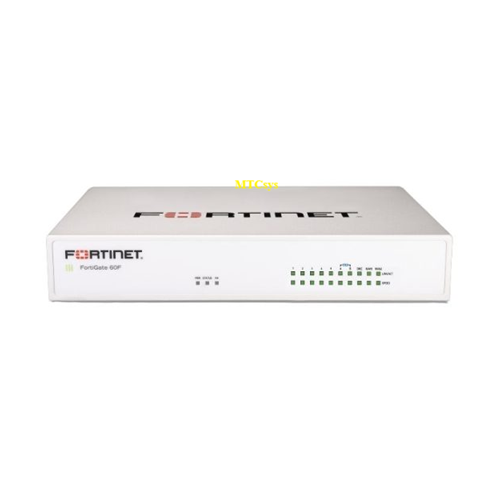

FortiGate 60F (FG-60F-BDL-950-12)
|
GE RJ45 WAN / DMZ Ports |
2 / 1 |
|
GE RJ45 Internal Ports |
5 |
|
GE RJ45 FortiLink Ports (Default) |
2 |
|
USB Ports |
1 |
|
Console (RJ45) |
1 |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput 2 |
1.4 Gbps |
|
NGFW Throughput 2, 4 |
1 Gbps |
|
Threat Protection Throughput 2, 5 |
700 Mbps |
|
Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
10/10/6 Gbps |
|
Firewall Latency (64 byte UDP packets) |
3.3 μs |
|
Firewall Throughput (Packets Per Second) |
9 Mpps |
|
Concurrent Sessions (TCP) |
700 000 |
|
New Sessions/Second (TCP) |
35 000 |
|
Firewall Policies |
2000 |
|
IPsec VPN Throughput (512 byte) 1 |
6.5 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
200 |
|
Client-to-Gateway IPsec VPN Tunnels |
500 |
|
SSL-VPN Throughput6 |
900 Mbps |
|
Concurrent SSL-VPN Users6 (Recommended Maximum, Tunnel Mode) |
200 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) 3 |
630 Mbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) 3 |
400 |
|
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 |
55 000 |
|
Application Control Throughput (HTTP 64K) 2 |
1.8 Gbps |
|
CAPWAP Throughput (HTTP 64K) |
8 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
24 |
|
Maximum Number of FortiAPs (Total / Tunnel Mode) |
64 / 32 |
|
Maximum Number of FortiTokens |
500 |
|
High Availability Configurations |
Active-Active, Active-Passive, Clustering |
