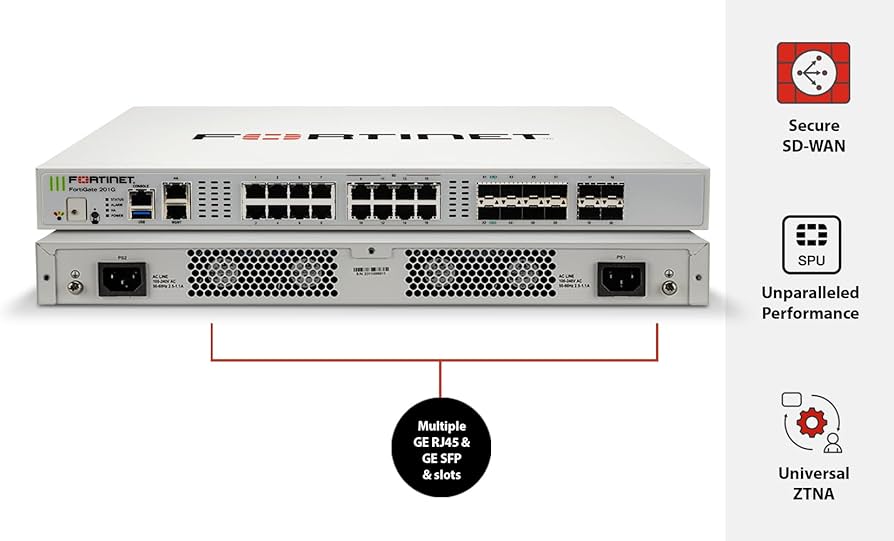

Fortinet 200G

|
GE RJ45 Ports |
8 |
|
GE RJ45 Management / HA |
1 / 1 |
|
5/2.5/GE RJ45 Ports |
8 |
|
GE SFP Slots |
4 |
|
10/GE SFP/+ FortiLink Slots (default) |
8 |
|
USB Port |
1 |
|
Console Port |
1 |
|
Onboard Storage |
0 |
|
Trusted Platform Module (TPM) |
yes |
|
Bluetooth Low Energy (BLE) |
yes |
|
Signed Firmware Hardware Switch |
yes |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput 2 |
9 Gbps |
|
NGFW Throughput 2, 4 |
7 Gbps |
|
Threat Protection Throughput 2, 5 |
6 Gbps |
|
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
39 / 39 / 26.5 Gbps |
|
IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
39 / 39 / 26.5 Gbps |
|
Firewall Latency (64 byte, UDP) |
4.36 μs |
|
Firewall Throughput (Packet per Second) |
39.75 Mpps |
|
Concurrent Sessions (TCP) |
11 Million |
|
New Sessions/Second (TCP) |
400 000 |
|
Firewall Policies |
10 000 |
|
IPsec VPN Throughput (512 byte) 1 |
36 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
|
Client-to-Gateway IPsec VPN Tunnels |
16 000 |
|
SSL-VPN Throughput6 |
3 Gbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
500 |
|
SSL Inspection Throughput(IPS, avg. HTTPS) 3 |
7 Gbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) 3 |
7100 |
|
SSL Inspection Concurrent Session(IPS, avg. HTTPS) 3 |
900 000 |
|
Application Control Throughput(HTTP 64K) 2 |
27.8 Gbps |
|
CAPWAP Throughput (HTTP 64K) |
37.5 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 25 |
|
Maximum Number of FortiSwitches Supported |
64 |
|
Maximum Number of FortiAPs (Total / Tunnel) |
256 / 128 |
|
Maximum Number of FortiTokens |
5000 |
|
High Availability Configurations |
Active-Active, Active-Passive, Clustering |
