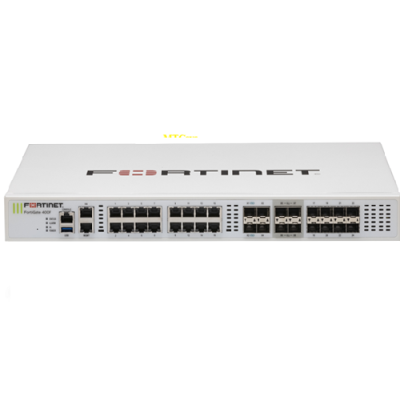

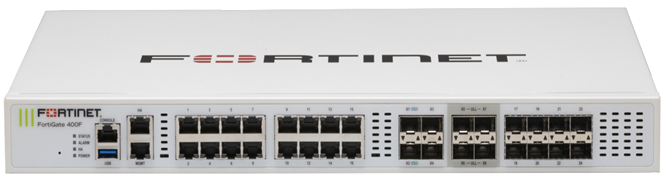

FortiGate-400F
|
Hardware Accelerated GE RJ45 Interfaces |
16 |
|
Hardware Accelerated GE SFP Slots |
8 |
|
Hardware Accelerated 10GE SFP+ Slots |
4 |
|
Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots |
4 |
|
GE RJ45 Management Ports |
2 |
|
USB Ports |
1 |
|
RJ45 Console Port |
1 |
|
Onboard Storage |
0 |
|
Included Transceivers |
2x SFP (SX 1 GE) |
|
IPS Throughput 2 |
12 Gbps |
|
NGFW Throughput 2, 4 |
10 Gbps |
|
Threat Protection Throughput 2, 5 |
9 Gbps |
|
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
79.5 / 78.5 / 70 Gbps |
|
IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
79.5 / 78.5 / 70 Gbps |
|
Firewall Latency (64 byte, UDP) |
4.19 μs / 2.5 μs* |
|
Firewall Throughput (Packet per Second) |
105 Mpps |
|
Concurrent Sessions (TCP) |
7.8 Million |
|
New Sessions/Second (TCP) |
500 000 |
|
Firewall Policies |
10 000 |
|
IPsec VPN Throughput (512 byte) 1 |
55 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
|
Client-to-Gateway IPsec VPN Tunnels |
50 000 |
|
SSL-VPN Throughput |
3.6 Gbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
5000 |
|
SSL Inspection Throughput(IPS, avg. HTTPS) 3 |
8 Gbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) 3 |
6000 |
|
SSL Inspection Concurrent Session(IPS, avg. HTTPS) 3 |
800 000 |
|
Application Control Throughput (HTTP 64K) 2 |
28 Gbps |
|
CAPWAP Throughput (HTTP 64K) |
65 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 25 |
|
Maximum Number of FortiSwitches Supported |
96** |
|
Maximum Number of FortiAPs (Total / Tunnel) |
512 / 256 |
|
Maximum Number of FortiTokens |
5000 |
|
High Availability Configurations |
Active-Active, Active-Passive, Clustering |
