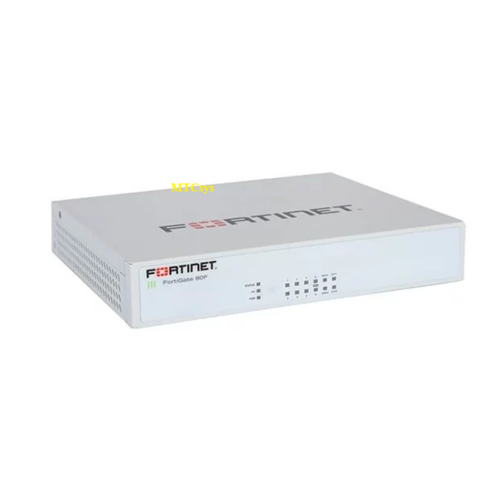

FG-80F-BDL-950-12
|
GE RJ45/SFP Shared Media Pairs |
2 |
|
GE RJ45 Internal Ports |
6 |
|
GE RJ45 FortiLink Ports (Default) |
2 |
|
USB Ports 3.0 |
1 |
|
Console (RJ45) |
1 |
|
Trusted Platform Module (TPM) |
✓ |
|
Bluetooth Low Energy (BLE) |
✓ |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput 2 |
1.4 Gbps |
|
NGFW Throughput 2, 4 |
1 Gbps |
|
Threat Protection Throughput 2, 5 |
900 Mbps |
|
System Performance and Capacity |
|
|
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) |
10 / 10 / 7 Gbps |
|
Firewall Latency (64 byte, UDP) |
3.23 μs |
|
Firewall Throughput (Packet per Second) |
10.5 Mpps |
|
Concurrent Sessions (TCP) |
1.5 Million |
|
New Sessions/Second (TCP) |
45 000 |
|
Firewall Policies |
5000 |
|
IPsec VPN Throughput (512 byte)1 |
6.5 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
200 |
|
Client-to-Gateway IPsec VPN Tunnels |
2500 |
|
SSL-VPN Throughput |
950 Mbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
200 |
|
SSL Inspection Throughput (IPS, avg HTTPS)3 |
715 Mbps |
|
SSL Inspection CPS (IPS, avg. HTTPS)3 |
700 |
|
SSL Inspection Concurrent Session (IPS, avg HTTPS)3 |
100 000 |
|
Application Control Throughput (HTTP 64K)2 |
1.8 Gbps |
|
CAPWAP Throughput (HTTP 64K) |
9 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
24 |
|
Maximum Number of FortiAPs (Total /Tunnel) |
96 / 48 |
|
Maximum Number of FortiTokens |
500 |
|
High Availability Configurations |
Active-Active, Active-Passive, Clustering |
